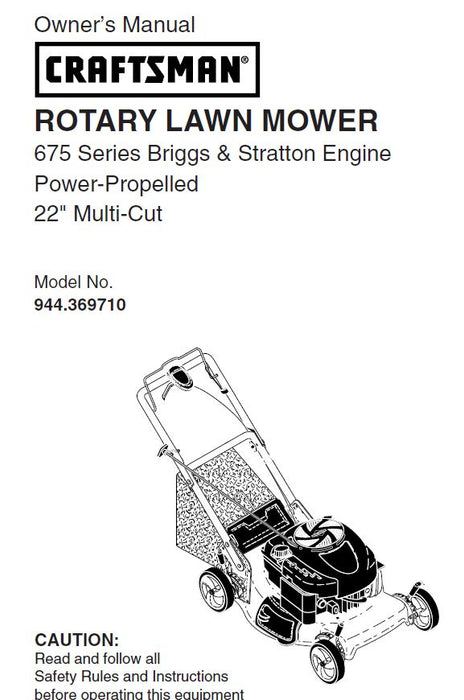

944.369710 Manual for Craftsman Lawn Mower Self-Propelled 22"

SKU
Original price $0.00 - Original price $0.00
Original price
$0.00
$0.00 - $0.00
Current price $0.00

944.369710 Manual for Craftsman Lawn Mower, 675 Series Briggs and Stratton Engine, power-propelled, 22" multi-cut. Manual includes parts breakdown for Briggs & Stratton 126T02-0372-B1

944.369710, 944369710, 944-369710, 944 369710

Common Engine Parts

Common Mower Parts

 We carry most of the parts for this lawn mower, including the most commonly replaced parts. If you can't find the part you need in our online store please contact us at 1-877-531-2873, parts@drmower.ca

1 427409 Drive Control Assembly (Includes Cable)
2 426260X428 Cover, Top
3 406262 Pulley
4 188281 Lever, Drive Control
5 406261X428 Cover, Bottom
6 181698 Screw
7 400235X479 Mouinting Bracket, Drive Control
9 472411 Cable, Drive
12 421527 Belt, Drive
13 424658 Gear Case Assembly, Complete
14 194128 Pulley, Drive
15 427460 Kit, Wheel Adjuster, Rear, RH (Includes Red Knob and Pushnut)
16 427461 Kit, Wheel Adjuster, Rear, LH (Includes Red Knob and Pushnut)
17 413808 Nut, Push
18 419345X615 Selector Knob
20 420771X428 Debris Shield
22 17000512 Bolt
25 421515X004 Mounting Bracket, Debris Shield
26 421516X004 Bracket, Gearcase
27 67725 Washer
28 12000058 E-Ring 7/16
29 189403 Cover, Dust, Wheel
30 191730 Nut, Hex
31 404845 Pawl, Drive
32 405745X427 Wheel & Tire Assembly, Rear
33 409148 Nut, Flangelock 3/8-16
34 404835 Pinion
35 427458 Kit, Wheel Adjuster, Front, RH (Includes Red Knob and Pushnut)
36 427459 Kit, Wheel Adjuster, Front, LH (Includes Red Knob and Pushnut)
37 163409 Screw, Hi-Lo Thread
40 400246X427 Wheel & Tire Assembly, Front
41 421114 Kit, Water Washout Assembly
42 419735 Fitting, Water Washout
43 415585 Washer, Lock, Internal Tooth
44 415586 Locknut, Hex, with O-Ring
55 406558 Spring, Return

1 427616X479 Upper Handle Assembly
2 425083 Cable, Engine Zone Control / Rear Door Prop
3 86899X004 Bracket, Upstop
4 426034 Plug, Housing Hole
5 66426 Wire Tie
6 189713X428 Handle Knob
7 750634 Screw #10-24 x 1/2
8 427611X428 Control Bar
9 424209 Rear Door Assembly
10 19131610 Washer
11 425575 Hairpin, Door/Handle Pivot
17 420031X428 Rear Baffl e
18 132004 Keps Locknut 1/4-20
19 194788 Rope Guide
20 423323 Rear Skirt
21 419949 Spring, Rear Door, LH, Black
22 141841 Screw, Panhead, Torx #20
24 419948 Spring, Rear Door, RH, Grey
26 419945 Screw, Rear Door/Handle Pivot

28 72250505 Bolt, Carriage 5/16-18 x 5/8
30 422507 Grassbag
31 419951 Frame, Grass Catcher
32 419944 Latch, Mulcher Door
33 423358 Mulcher Door
34 419946X615 Bracket, Grassbag
36 175735 Hinge Bracket Assembly
37 17000512 Screw, Flanged, Thread Cutting 5/16-18 x 3/4
38 419942X428 Discharge Defl ector
39 419033X479 Handle Bracket, LH
40 419031X479 Handle Bracket, RH
41 150406 Screw, Dogpoint 3/8-16 x 1-1/8
42 193000 Spring, Torsion
43 191730 Nut, Hex, Nylock
44 427343 Kit, Lawn Mower Housing
45 175650 Rod, Hinge
46 421782 Blade Adapter / Pulley
47 421825 Blade, 22"
48 851074 Washer, Hardened

49 850263 Washer, Helical
50 851084 Screw, Machine, Hex Head 3/8-24 x 1-3/8 Grade 8
51 419943 Front Baffl e
52 404763 Decal, Danger
53 17060408 Screw, Semi-Gimlett Point 1/4-20 x 1/2
56 17411312 Screw, Hex Washer Head #13 x 3/4
57 155377 Nut, Hex
58 421241X479 Lower Handle
59 191574 Handle Bolt
61 73930500 Nut, Hex 3/8-16
62 420474X004 Belt Retainer
63 178848 Screw #10-16 x 5/8
64 - - - Engine, Briggs & Stratton, Model Number 126T02-0372-B1 (See Breakdown)
- - 427341 Owner’s Manual, English
- - 427342 Owner's Manual, French
