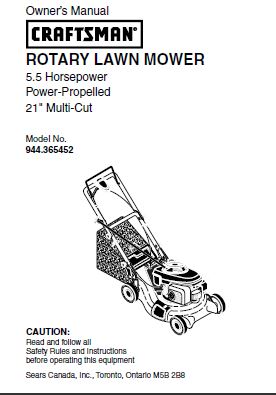

944.365452 Manual for Craftsman 5.5 HP Power Propelled 21" Multi-Cut Lawn Mower

includes owner's manual and parts lists for the lawn mower and Honda GCV-160-AS3A engine

We carry parts for this lawn mower and parts for the engine.  If you can't find the parts you need in our online store, please contact us for assistance: parts@drmower.ca 1-877-531-2873.

1 196782 Drive Control Assembly
2 195745 Cover, Top
3 187353 Pulley
4 188281 Lever, Drive Control
5 195744 Cover, Bottom
6 181698 Screw
7 400235X479 Mounting Bracket
8 184987 Cap, Bottom
9 196784 Cable, Drive
10 194215 Decal, Drive Control Operation
12 187653 Screw
13 188645 Gear Case Assembly, Complete
14 194128 Pulley, Drive
16 161584 Rod, Connecting
17 161602 Spring, Extension
18 193663X004 Spring, Selector
19 167650 Knob, Selector Spring
20 12000022 E-Ring 7/8
21 163365 Bearing, Support
22 169911 Bearing, Ball
23 161118X004 Retainer, Drive Assembly
24 57808 Screw, Tapping, Hex Head 1/4-20 x .75
25 199775X428 Cover Drive
26 750634 Screw, Threaded, Rolled #10-25 x .50
27 52160 Washer, Shim (as required)
28 12000058 E-Ring 7/16
29 189403 Cover, Dust, Wheel
30 175104 Disc, Drive
31 184172 Seal, Friction
32 180774 Wheel 9 x 2
33 83923 Nut, Flangelock 3/8-16

34 180626 Hubcap, Mag
35 193440X004 Shaft Assembly, Rear
36 193438X004 Shaft Assembly, Front
37 161463 Retainer, Front Shaft
38 163409 Screw #12 x 5/8
39 700279 Clip, Retainer
40 150339 Wheel 8 x 2
41 188330 Pinion Assembly, RH
42 145212 Nut, Flangelock
43 188331 Pinion Assembly, LH
44 182212 V-Belt
45 175098 Pawl
46 188291 Spring, Torsion
47 67725 Washer
48 175105 Retainer, Drive, LH
49 175103 Pinion, Gear
50 175102 Retainer, Drive, RH
51 187530 *Case, Lower
52 187531 *Case, Upper
53 187532 Gear, 24 Teeth
54 187533 Shaft, Input
55 183505 Wire, Formed
56 183506 Bearing, Ball
57 183508 Seal, Output Shaft
58 183509 Washer
59 183511 Bushing
60 191249 Shaft, Output
61 183513 Screw
62 183514 Seal, Input Shaft

1 194577X479 Handle, Upper
2 193664X479 Handle, Lower
3 186053 Spring, Rear Door, RH
4 194788 Rope Guide
5 132004 Nut, Hex, with Lockwasher Insert 1/4-20
6 66426 Wire, Tie
7 191574 Bolt, Handle 5/16-18 x 2-5/8
8 182398 Knob, Handle
9 194580X428 Control Bar
12 51793 Cotter, Hairpin
13 186052 Spring, Rear Door, LH
14 750634 Screw
15 850733X004 Bracket, Upstop
16 185855X428 Kit, Rear Door (Includes Springs)
17 184193 Bolt, Rear Door
18 198170 Plug, Mulcher
19 196088 Kit, Housing
20 193917X479 Handle Bracket Asembly, LH
21 193916X479 Handle Bracket Assembly, RH
22 150078 Screw, Hex Washer Head
23 163183 Bolt, Hex Head 5/16-18 x 5/8
24 73800500 Nut, Hex, with Lockwasher Insert 5/16-18
25 161333 Baffl e, Side
26 163409 Screw #12 x 5/8
27 188986 Skirt, Rear
28 88652 Screw, Hinge 1/4-20 x 1.25
29 191221 Cable, Engine Zone Control
30 189179 Blade Adapter / Pulley
31 189028 Blade, 21"

32 851074 Washer
33 850263 Washer, Lock
34 851084 Bolt, Hex Head
35 188786 Debris Shield
36 192325 Bolt
37 150406 Bolt, Engine
38 - - - Engine, Honda, Model Number
GCV160-AS3A (See Breakdown)
39 403270 Grassbag
40 194644 Frame, Grassbag
41 404763 Danger Decal
42 54583 Screw
45 183058X428 Mulcher Door Assembly
46 169699X428 Discharge Guard
47 88349 Nut, Hex
48 188839X004 Mounting Bracket, Debris Shield
50 57808 Screw
51 193791 Pulley, V-Groove, Idler
52 145212 Flanged Nut
53 155552 Locknut
54 193792X004 Idler Arm
55 166043 Idler Pulley
56 160829 Shoulder Bolt
57 193315X004 Bracket Assembly
60 182226 Spring, Return
96 197991 Clip, Cable
- - 162300 Warning Decal (not shown)
